This field editor allows an author to make single or multiple selections of images that have been uploaded to Contensis.

Selection is made in an image gallery. Single or multiple selection of images is determined by the multiple selection field setting.

Appearance

field-editor-image-single

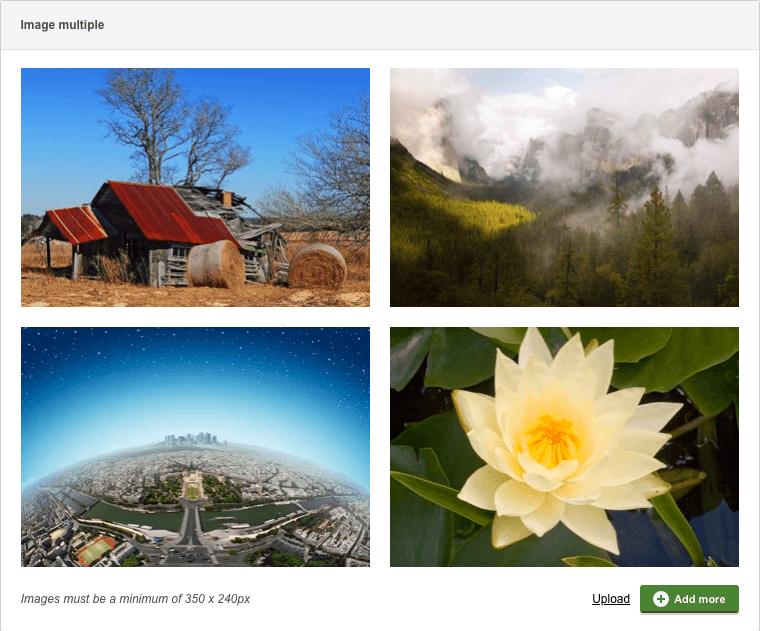

field-editor-image-multiple

Settings

Setting nameSummary
Name A text label to identify the field in an entry.
Field ID A sanitised name to be used by the API.
Multiple selection Allows an author to select multiple images.
Read only Prevents authors from editing the field in the entry editor.

Supported validation

This field editor supports the following validation methods:

Properties

Common properties

Property nameSummary
Placeholder text The placeholder property provides a short hint describing the expected value of a field.
Content guidelines Provides guidance to an author for the expected content the field should contain.

Alt text

The alt text property determines if the alt text field should be displayed on an image field. The alt text can also be set to required once its enabled preventing an entry from being published until it is populated.

Caption

The caption property determines if the alt text field should be displayed on an image field. The caption can also be set to required once its enabled preventing an entry from being published until it is populated.

Dimensions

The dimensions property allows you to set the expected image dimensions for the field.The setting also determines what images are displayed in the gallery for the field, filtering out any images that do not meet the requirements.

Upload

The upload property allows you to set if an author should be allowed to upload images to the field. Images will be uploaded to the folder set in the search box.

Limit the display of images

This property determines which images should be displayed in the image gallery for the field. By default all images are shown.
